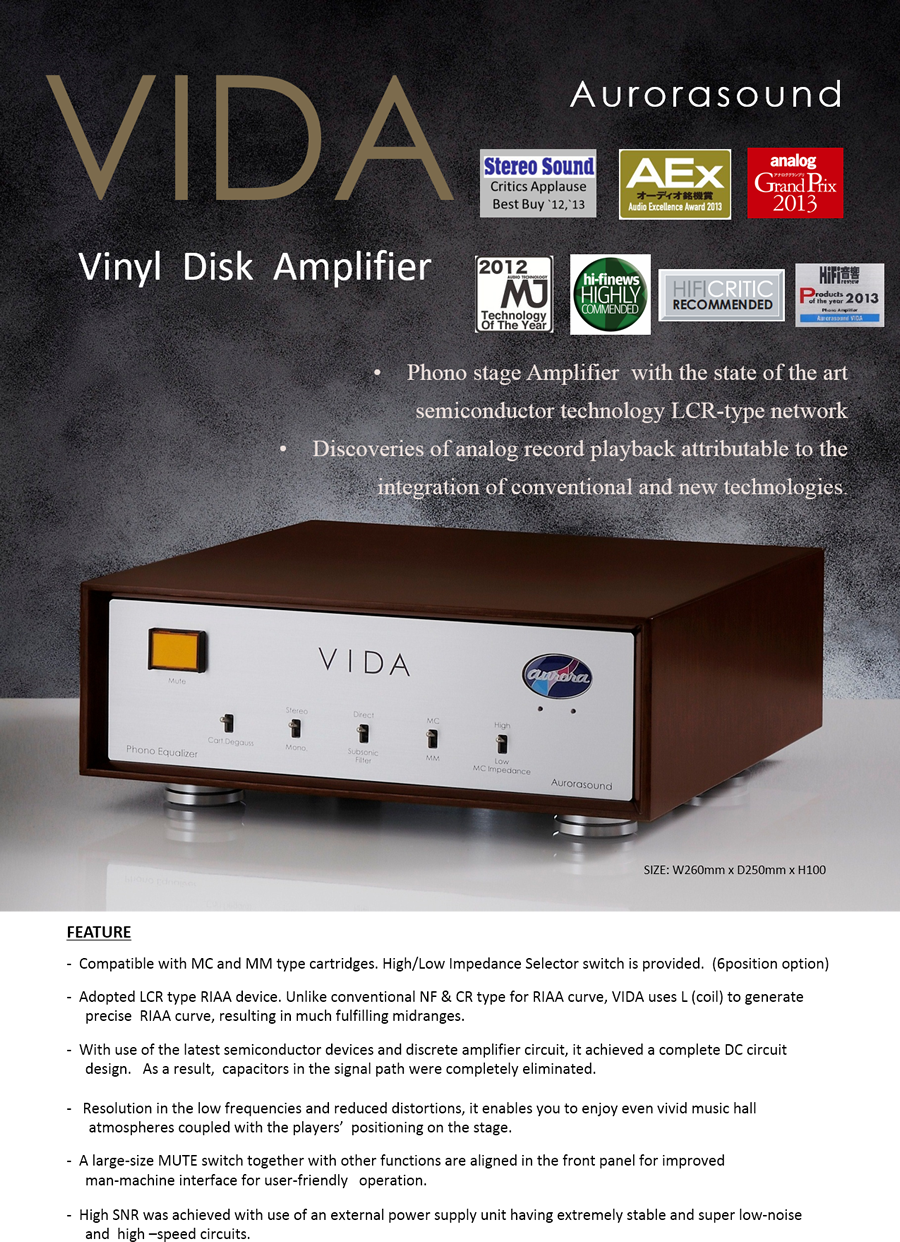

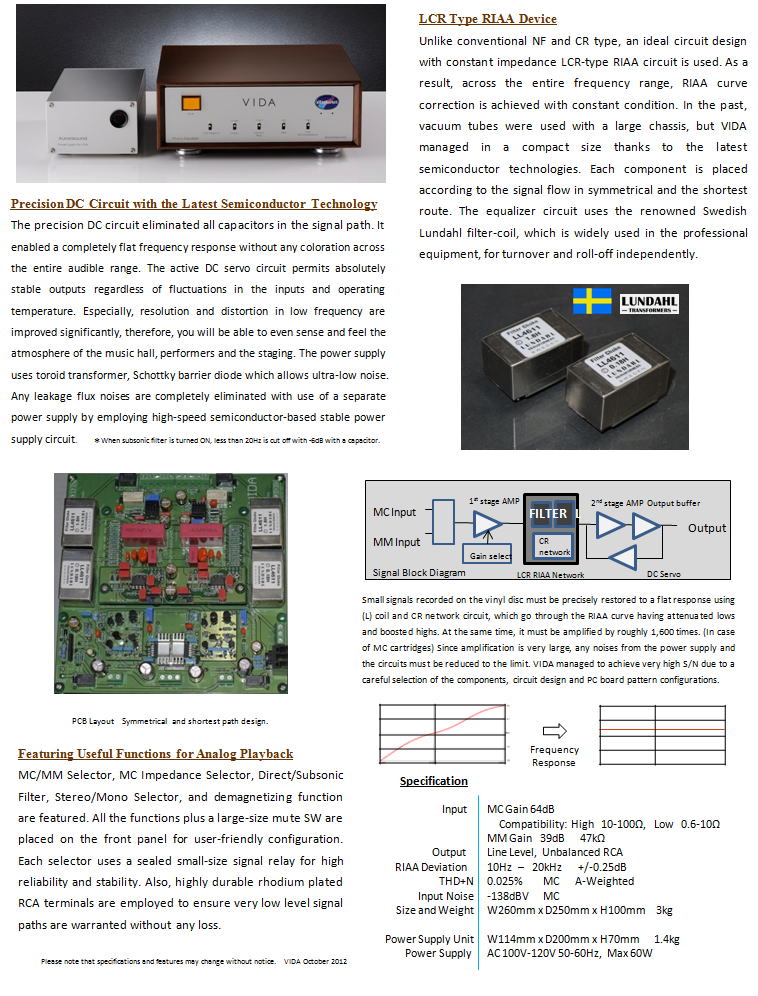

VIDA product review and listening impression (click here)

                                                    alt        alt       alt

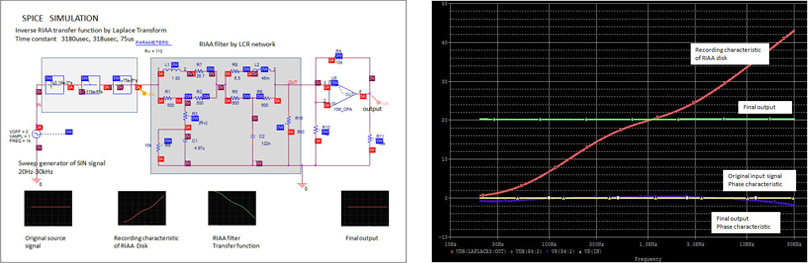

Computer simuation of LCR methodology.
Very good result of equalising compensation for both of frequency and phase characterristics.
Frequency response of final output signal is flat from 20Hz tro 30kHz, and phase characterristic also accurate.





                  The following charts are actual measurement data by Audio Precision system        Serail No. 4J12026

                4J12026EQ   4J12026THDNA

                  RIAA EQ curve compensation result         Red/L-CH,  Yellow/R-CH                             THD+N   Cyan/L-CH,  Yellow/R-CH





More information, please contact E-Mail mailadress
Tel +81-45-953-6708
